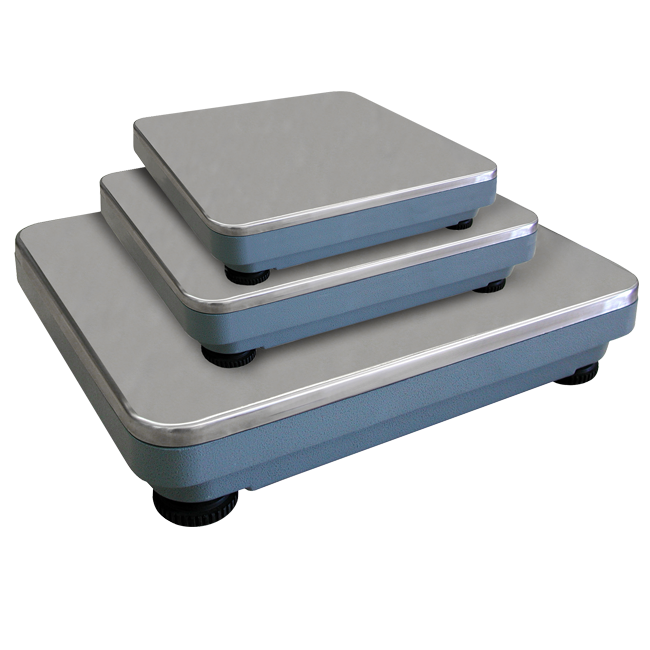

Single Loadcell Platforms MA
Rectangular weighing platforms of small and medium range (from 30 kg to 600 kg), for installation on the floor or on a table.
350 x 450 mm / 30 kg
Reference: 71AS3545002_ _ _
- 3,000 divisions.
350 x 450 mm / 60 kg
Reference: 71AS3545001_ _ _
- 3,000 divisions.
350 x 450 mm / 150 kg
Reference: 71AS3545003_ _ _
- 3,000 divisions.
420 x 520 mm / 60 kg
Reference: 71AM4252001_ _ _
- 3,000 divisions.
420 x 520 mm / 150 kg
Reference: 71AM4252003_ _ _
- 3,000 divisions.
420 x 520 mm / 300 kg
Reference: 71AM4252004_ _ _
- 3,000 divisions.
600 x 800 mm / 300 kg
Reference: 71AL6080004_ _ _
- 3,000 divisions.
600 x 800 mm / 600 kg
Reference: 71AL6080005_ _ _
- 3,000 divisions.
Shipping
1 & 1 Returns
Cancellation after 1 day
Secure Payment
Guarantee secure payments
After Sales Support
Hotline Order:
Mon - Fri: 07AM - 06PM
Main characteristics
- Top-of-floor or on table weighing platform.
- 1 load cell.
- Valid for legal metrology (see section on equipment metrological verification).
Construction
- Blue painted steel structure (aluminium in 420 x 520 mm model).
- Aluminium load cell (IP65).
- Stainless steel plate
- Height adjustable feet.
Possible integration with other equipment
- Dibal weight indicators.
- Dibal manual weigh-price labellers.
