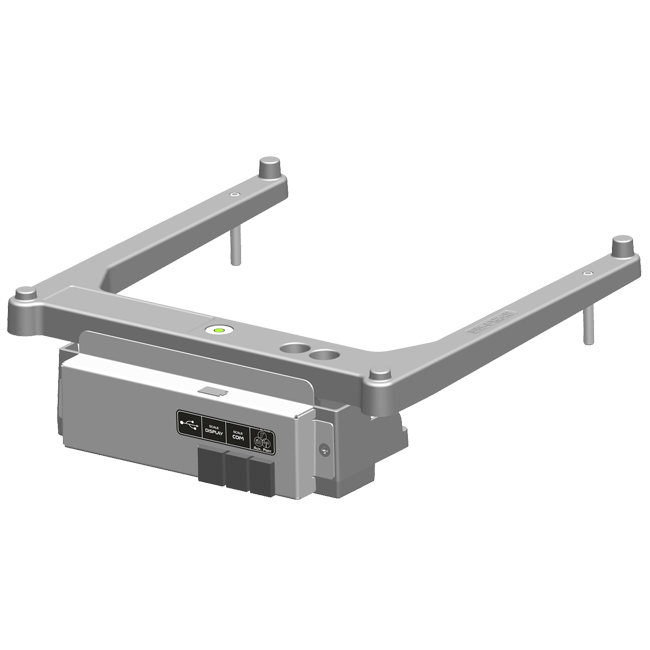

Weighing Kits for Scanner Integration (with Assembly Approval) KS-POS
Weighing kits (without display) to integrate with bi-optic scanner, for POS or ECR connection with assembly approval.
KS-POS M – 0 DISP. (9900 / 9600 / 9550)
Reference: 7N0K000N_ _ _
Weighing kit for integration with Datalogic Magellan 9900 / 9600 / 9550 scanners.
Scanner not included.
KS-POS M – 0 DISP. (8300 / 8400 / 9300i / 9400i)
Reference: 7N0H000N_ _ _
Weighing kit for integration with Datalogic Magellan 8300 / 8400 / 9300i / 9400i scanners.
Scanner not included.
KS-POS M – 0 DISP. (9800i)
Reference: 7N0I000N_ _ _
Weighing kit for integration with Datalogic Magellan 9800i scanner.
Scanner not included.
KS-POS Z – 0 DISP. (MP7000)
Reference: 7N0F000N_ _ _
Weighing kit for integration with Zebra MP7000 scanner.
Scanner not included.
Shipping
1 & 1 Returns
Cancellation after 1 day
Secure Payment
Guarantee secure payments
After Sales Support
Hotline Order:
Mon - Fri: 07AM - 06PM
Main characteristics
- Weighing kit for integration with scanner.
- Modular and modern design.
- Easy integration into counters.
- ECR/POS connection.
- Approved Dibal software (K-SW) to display the weight or weight, price / kg, ammount information on the connected POS screen.
- Application for integration with third-party software. (The integration must be validated by Dibal).
- Valid for legal metrology.
Features
- Tare, fix tare and manual zero.
- Power supply and communications through one single USB cable.
- The weighing components are located in an isolated area, so scanner maintenance operations may be carried out without the need to unseal the equipment.
Capacity / Accuracy
- Multi-range (3,000 divisions): 6 kg / 2 g - 15 kg / 5 g.
- Optional:
- Mono-range (3,000 divisions): 15 kg / 5 g.
Available formats
- Weighing kit for integration with scanner.
Communication to PC / POS / ECR
- USB interface.
- Approved POS integration software (K-SW).
Compatibility with scanners
- Datalogic Magellan 9900 / 9600 / 9800i / 9400i / 9550 / 9300i / 8400 / 8300 scanners.
- MP7000 Zebra scanner.
Power supply
- Power via USB connection from a PC, POS, ECR, etc.
Energy consumption
- 1 W (approx.).
